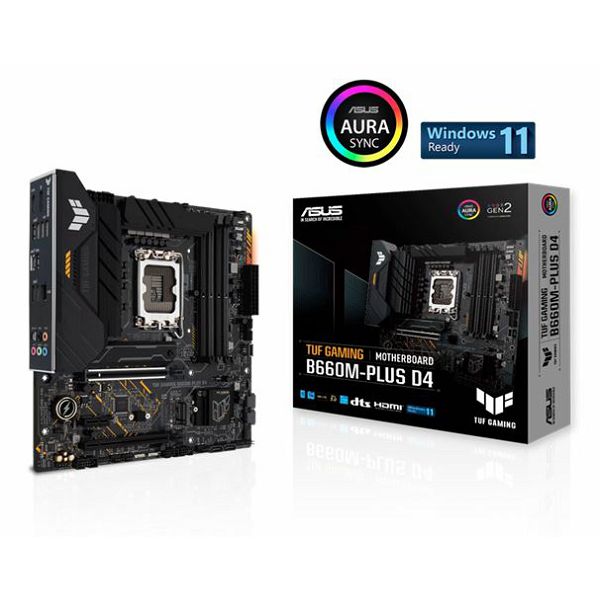

ASUS TUF GAMING B660M-PLUS D4 takes all the essential elements of the latest Intel® processors and combines them with game-ready features and proven durability. Engineered with military-grade components, an upgraded power solution and a comprehensive cooling system, this motherboard offers rock-solid and stable performance for marathon gaming. Aesthetically, TUF GAMING B660M-PLUS D4 sports the new TUF Gaming logo and incorporates simple geometric design elements to reflect the dependability and stability that defines the TUF Gaming series.
Osnovne karakteristike:
Socket: LGA1700
CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Chipset (N): Intel B660
BUS[MHz]: 1000
Memorija: DDR4
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4

Ostale karakteristike:
RAID: 0, 1, 1+0, 5

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 2.5Gb Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.0: 0

Konektori:
S/PDIF Out: Y
4-pin ATX 12V Power: 1
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 2
Format ploče: µATX
WLAN connector: n/a
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 2
U.2: n/a
USB 3.1: 0
USB 3.1: 0
PCIe 4.0 x16: 1
USB 3.2: 6
Wireless: Nema
PCIe 5.0 x16: 1
PCIe 4.0 x1: 1
