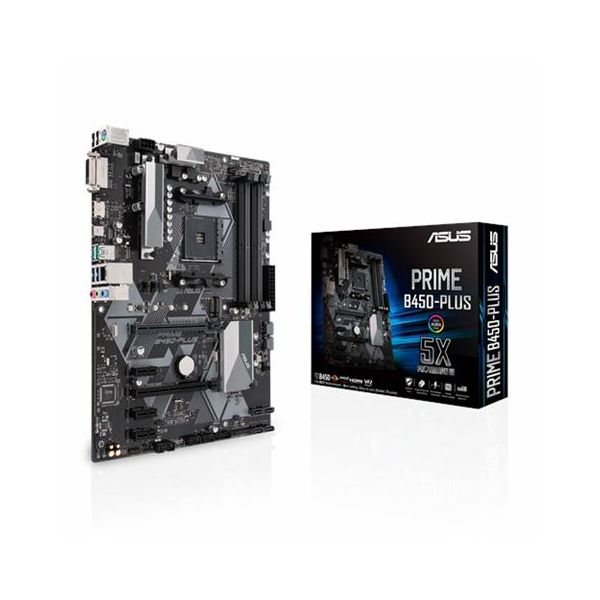

PRIME B450-PLUS, AM4, AMD B450, DDR4, Broj utora 4, 2133,2400,2666,2800 ,3000,3200 MHz, PCIe 3.0 x16 1, PCIe x4 1, PCIe x1 3, SATA3 6, RAID 0,1, 8-kanalni audio, 1x 10/100/1000 Ethernet, USB 3.0 1, USB 2.0 2, ATX, M.2 1, USB 3.1 4
Osnovne karakteristike:
Socket: AM4
CPU: AMD A10, AMD A12, AMD A8
Chipset (N): AMD B450
BUS[MHz]: 1000
Memorija: DDR4
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 2133, 2400, 2666, 2800, 3000, 3200

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 3
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 6

Ostale karakteristike:
RAID: 0, 1

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 10/100/1000 Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: 1
eSATA: 0
D-sub: n/a
DVI: 1
Display Port: n/a
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.0: 1

Konektori:
S/PDIF Out: n/a
FireWire: 0
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 1
Format ploče: ATX
WLAN connector: n/a
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 1
U.2: n/a
USB 3.1: 4
USB 3.1: 1
USB 3.2: 0
