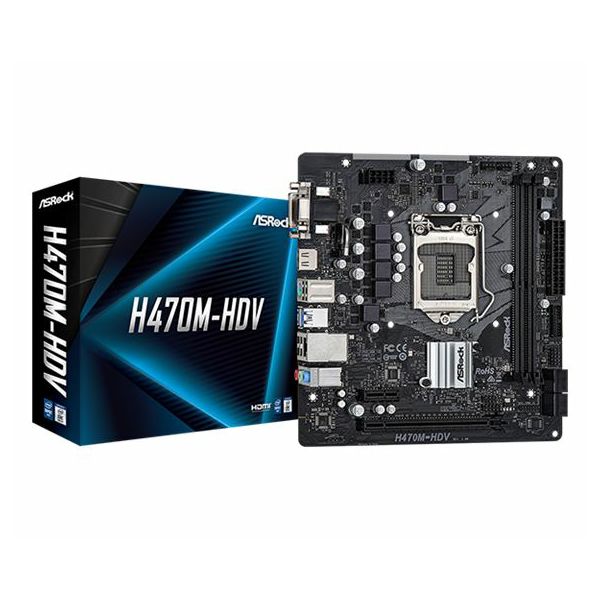

H470M-HDV, LGA 1200, Intel H410, DDR4, Broj utora 2, 64 GB, Takt 2133 - 2933 MHz, PCIe 3.0 x16 1, PCIe x1 1, SATA3 4, 8-kanalni audio, D-sub 1, HDMI 1, DVI-D 1, RJ45 1 USB 3.2 2
Osnovne karakteristike:
Socket: 1200
CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Chipset (N): Intel H470
BUS[MHz]: 1000
Memorija: DDR4
Broj utora: 2
Max. memorije [GB]: 64
Takt memorije [MHz]: 2133, 2400, 2666, 2800, 2933

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: n/a
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4

Ostale karakteristike:
RAID: 0, 1, 5

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 10/100/1000 Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: 1
eSATA: 0
D-sub: 1
DVI: 1
Display Port: n/a
HDMI: 1
RJ45: 1
USB 2.0: 4
USB 3.0: 0

Konektori:
S/PDIF Out: n/a
FireWire: 0
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 1
CPU Fan Power: 1
Format ploče: mATX
WLAN connector: n/a
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: n/a
U.2: n/a
USB 3.1: 0
USB 3.1: 2
USB 3.2: 2
