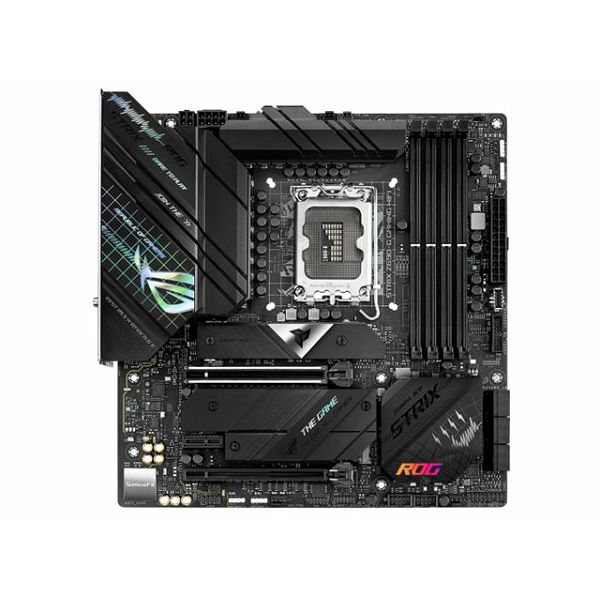

STRIX Z690-G GAMING (WI-FI), LGA1700, Intel Z690, DDR5, Broj utora 4, SATA3 6, RAID n/a, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, mATX, WLAN connector 2, USB 3.2 7,0000, PCIe 5.0 x16 1
Osnovne karakteristike:
Socket: LGA1700
CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Chipset (N): Intel Z690
BUS[MHz]: 1000
Memorija: DDR5
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 2133, 2400, 2666, 2933, 3200, 3333, 3466, 3600, 3733, 4000

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 0
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 6

Ostale karakteristike:
RAID: n/a

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 2.5Gb Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.0: 0

Konektori:
S/PDIF Out: n/a
4-pin ATX 12V Power: 1
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 2
Format ploče: mATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 2
U.2: n/a
USB 3.1: 0
USB 3.1: 2
PCIe 4.0 x16: 0
USB 3.2: 7
Wireless: Wi-Fi 6E
PCIe 5.0 x16: 1
