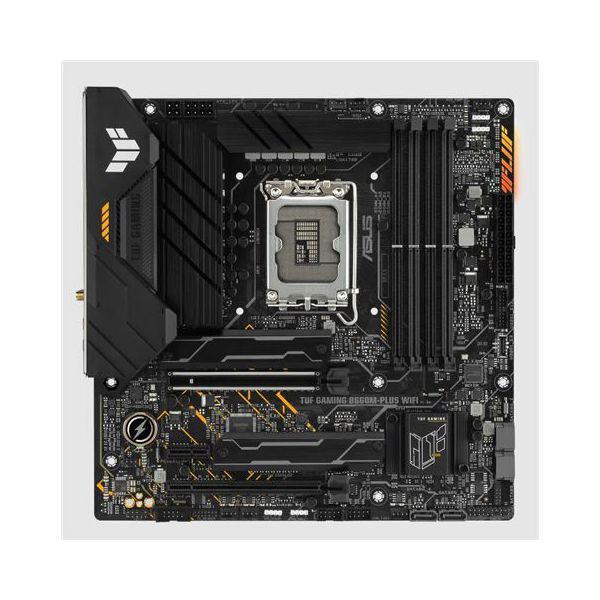

TUF GAMING B660M-PLUS WIFI, LGA1700, Intel B660, DDR5, Broj utora 4, 5000 - 6000MHz, PCIe 5.0 x16 1, SATA3 4, 8-kanalni audio, 1x 2.5Gb Ethernet, HDMI 1, Display Port 1, WLAN connector 2, USB 3.2 6
Osnovne karakteristike:
Socket: LGA1700
CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Chipset (N): Intel B660
BUS[MHz]: 1000
Memorija: DDR5
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 5000, 5200, 5400, 5600, 5800, 6000

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 0
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4

Ostale karakteristike:
RAID: 0, 1, 1+0, 5

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 2.5Gb Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 1
USB 2.0: 2
USB 3.0: 0

Konektori:
S/PDIF Out: Y
4-pin ATX 12V Power: 1
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 2
Format ploče: µATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 2
U.2: n/a
USB 3.1: 0
USB 3.1: 2
PCIe 4.0 x16: 0
USB 3.2: 6
Wireless: Nema
PCIe 5.0 x16: 1
PCIe 4.0 x1: 0
