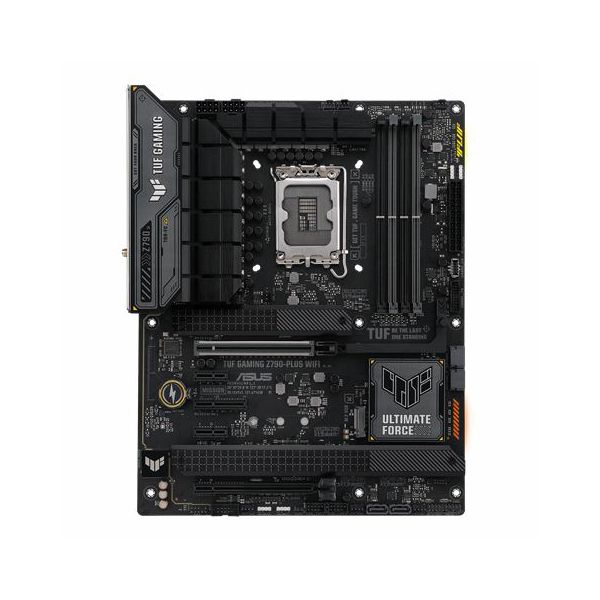

TUF GAMING Z790-PLUS WIFI, LGA1700, Z790, DDR5, Broj utora 4, 4800 - 7200MHz, PCIe 5.0 x16 1, SATA3 4, RAID 0, RAID 1, RAID 5, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, ATX, WLAN connector 2, USB 3.2 8
Osnovne karakteristike:
Socket: LGA1700
CPU: Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
Chipset (N): Z790
BUS[MHz]: 1000
Memorija: DDR5
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400+

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 0
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 2
PCIe x1: 2
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4

Ostale karakteristike:
RAID: 0, 1, 5

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 2.5Gb Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 1
USB 2.0: 0
USB 3.0: 0

Konektori:
S/PDIF Out: n/a
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 4
CPU Fan Power: 2
Format ploče: ATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 4
U.2: n/a
USB 3.1: 0
USB 3.1: 2
PCIe 4.0 x16: 0
USB 3.2: 8
Wireless: Wi-Fi 6E
PCIe 5.0 x16: 1
Bluetooth: Da
