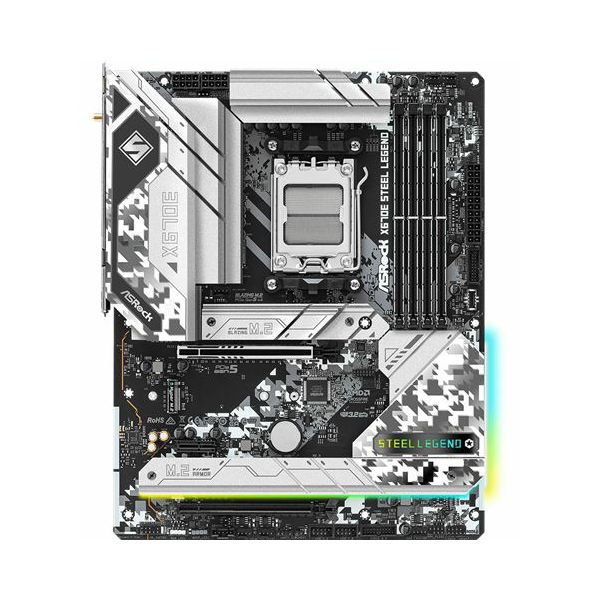

X670E STEEL LEGEND, AM5, AMD X670, DDR5, Broj utora 4,0000, PCIe 3.0 x16 1, SATA3 4, 8-kanalni audio, 1x 2.5Gb Ethernet, Display Port 1, ATX, WLAN connector 2, USB 3.2 8,0000, PCIe 5.0 x16 1
Osnovne karakteristike:
Socket: AM5
CPU: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9
Chipset (N): AMD X670
BUS[MHz]: 1000
Memorija: DDR5
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 2133, 2400, 2666, 2933, 3200, 3466, 3600, 3733, 3866, 4000, 6000

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: n/a
PCIe x1: 1
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 4

Ostale karakteristike:
RAID: n/a

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 2.5Gb Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
eSATA: 0
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: 2
USB 2.0: 4
USB 3.0: 0

Konektori:
S/PDIF Out: Y
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 4
CPU Fan Power: 2
Format ploče: ATX
WLAN connector: 2
Podrška za integrirani grafičk: Y
SATA Express: n/a
M.2: 4
U.2: n/a
USB 3.1: 0
USB 3.1: 2
USB 3.2: 8
Wireless: Wi-Fi 6E
PCIe 5.0 x16: 1
